What is a Cylinder Head and How Does It Work in an Engine

The cylinder head is an important part of an engine. It is placed on top of the engine block. It seals the combustion chamber to keep it closed. Its main job is to hold parts like valves and spark plugs. It also has paths for coolant and air-fuel mixtures. It controls combustion to help the engine work well. A good cylinder head boosts power and saves fuel. It also helps lower harmful emissions.

Key Takeaways

The cylinder head closes the engine’s top, mixing air and fuel.
Taking care of the cylinder head can make the engine last longer.
Smooth airflow in the cylinder head makes the engine stronger and cleaner.
The cylinder head helps cool the engine by moving heat away.
Problems with the cylinder head include overheating, white smoke, or leaks.
Checking and cleaning the cylinder head often can stop big problems.
Using the right coolant and keeping it full stops overheating issues.
Changing old gaskets and seals quickly keeps the engine working well.

What is a Cylinder Head?

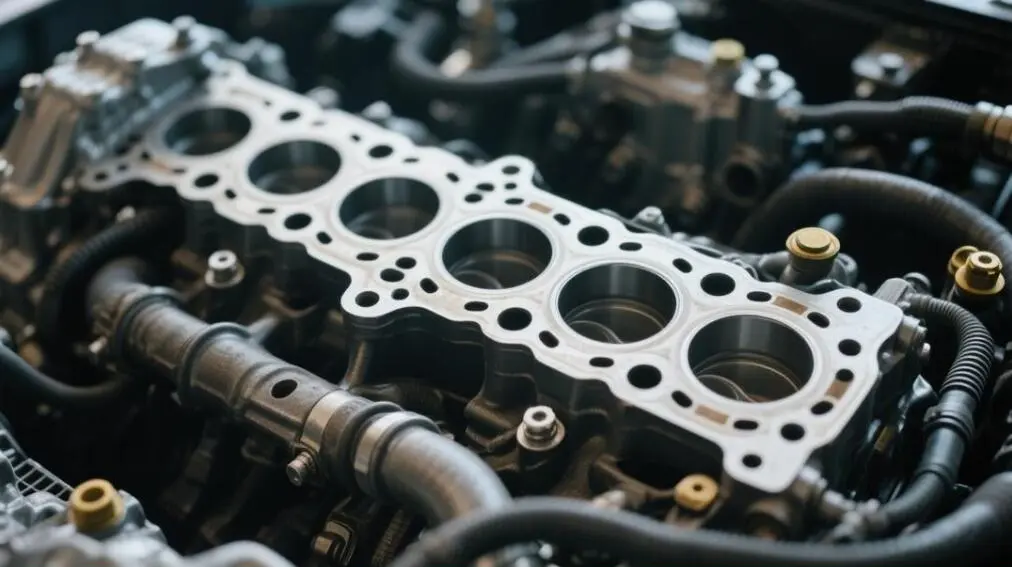

diesel_engine_cylinder_head_from_baileparts.

Definition and Purpose

The cylinder head is a key part of the engine. It sits on top of the engine block and covers the combustion chamber. Its main job is to seal the chamber so the air-fuel mix burns properly. This helps the engine make power and run smoothly.

Inside the cylinder head, there are important parts like valves, spark plugs, and camshafts. These parts manage how air, fuel, and exhaust move in and out. The cylinder head also has coolant paths to keep the engine cool by removing heat.

Most modern cylinder heads are made from strong materials like aluminum or cast iron. These materials handle high heat and pressure during engine use. Special casting methods are used to make sure the cylinder head is strong and works well.

Importance in Engine Functionality

The cylinder head is very important for how the engine works. It affects power, efficiency, and how long the engine lasts.

Better Airflow: A good cylinder head helps air and exhaust move easily, boosting power.
Compression Ratio: The cylinder head sets the compression ratio, which affects engine power.
Valve Control: It controls when and how valves open and close for smooth running.
Cooling System: Coolant paths in the cylinder head stop the engine from overheating.
Efficient Combustion: Its design helps burn the air-fuel mix completely, saving fuel and cutting emissions.

For instance, engines with advanced cylinder heads, like double overhead camshafts (DOHC), perform better. These designs allow precise valve control, making them great for fast cars.

How Does a Cylinder Head Work?

Role in the Combustion Process

The cylinder head is key to the combustion process. It seals the chamber where fuel burns, keeping pressure inside. This pressure helps the engine make power to move the car. If the cylinder head doesn’t work right, the engine loses pressure and runs poorly.

It also controls how air moves in and out of the chamber. Good airflow is needed for fuel to burn well. The air mixes with fuel to make the air-fuel blend. The cylinder head spreads this mix evenly, helping the engine use fuel better. Engines with good cylinder heads can fill the chamber more effectively. Regular engines fill 60-90%, while high-performance ones reach 100-120%.

The size and design of the cylinder head affect engine power. Bigger, better cylinder heads allow more air to flow, boosting power. That’s why fast cars use advanced cylinder head designs.

Air-Fuel Mixture Delivery

The cylinder head sends the air-fuel mix into the chamber. Air enters through the intake manifold and then passes through intake ports and valves. These valves open and close at the right times to let air mix with fuel.

Inside the chamber, the cylinder head spreads the mix evenly. Even mixing is important for burning fuel efficiently. If the mix isn’t even, some parts burn too hot, while others don’t burn. This wastes fuel and increases pollution.

Modern cylinder heads improve how the mix is delivered. Some have special intake ports that swirl air as it enters. This swirling helps air and fuel mix better, making the burn cleaner and more efficient.

Exhaust Gas Removal

After fuel burns, the cylinder head removes exhaust gases. This step is as important as bringing in air and fuel. If gases stay in the chamber, they mix with fresh air and fuel, lowering engine power.

The cylinder head has exhaust ports and valves to let gases out. These valves open after burning, sending gases to the exhaust manifold. A well-designed cylinder head removes gases quickly and smoothly.

Badly designed cylinder heads can cause back pressure. Backpressure happens when gases don’t leave fast enough. It reduces engine power and can cause overheating. High-quality cylinder heads are made to avoid backpressure and remove gases efficiently.

Heat Dissipation and Cooling

The cylinder head helps manage heat made by the engine. Burning fuel in the chamber creates a lot of heat. Without cooling, this heat can harm engine parts and lower performance. The cylinder head keeps the engine temperature steady.

How the Cylinder Head Manages Heat

The cylinder head has coolant paths to move heat away. Coolant flows through these paths, taking heat to the radiator. This stops overheating and helps the engine work well.

The cylinder head is built with materials that handle high heat. Aluminum and cast iron are often used because they cool down quickly. These materials keep the cylinder head strong even in tough conditions.

Why Heat Dissipation Matters

Good cooling protects the engine from damage. Too much heat can bend or crack the cylinder head, costing a lot to fix. It also affects how fuel burns. Overheating makes fuel burn unevenly, lowering power and raising emissions.

Cooling also helps the engine last longer. Stable temperatures stop heat stress on engine parts. This keeps your car running well for years.

Signs of Cooling System Problems

Look for signs that the cooling system isn’t working:

Engine Overheating: The temperature gauge shows higher than normal.
Coolant Leaks: You see coolant puddles under the car.
Steam from the Hood: Steam comes out of the engine area.

Fix these problems quickly to avoid serious damage.

Maintaining the Cooling System

Follow these steps to keep the cooling system healthy:

Check Coolant Levels: Look at the coolant tank often and refill if needed.
Flush the System: Clean out old coolant to remove dirt and buildup.
Inspect for Leaks: Check hoses and connections for cracks or leaks.
Clean the Radiator: Make sure the radiator is clear of dirt and blockages.

🚗 Pro Tip: Use the right type of coolant for your car to improve cooling.

By learning how the cylinder head cools the engine and caring for the cooling system, you can stop overheating and keep your engine running smoothly.

Key Components of a Cylinder Head

Valves and Their Function

Valves help the engine breathe by controlling airflow. Intake valves let air and fuel into the chamber. Exhaust valves release burnt gases after combustion. These valves open and close at exact times for smooth engine operation.

Engineers use tests to check valve performance:

Flow testing shows how air moves through the valves.
Leak tests find gaps that may lower efficiency.
Tools like swirl meters measure how well valves work.

If valves don’t work right, the engine loses power or makes noises. Regular checks and repairs can prevent these problems.

Spark Plugs and Ignition

Spark plugs start the explosion that powers the engine. They ignite the air-fuel mix in the chamber. Placement and timing of spark plugs are key for good combustion.

Studies show how spark plug design improves performance:

Study	Findings
Migita et al.	Twin-spark plugs create faster and better combustion.
Forte et al.	Improved power and reduced engine performance changes.
Maji et al.	Dual-spark plugs boosted power by 3–5% over single plugs.
Quader	Allowed leaner fuel use and quicker combustion.
Kuroda et al.	Better spark placement led to even burning and lower emissions.

Modern engines often use twin-spark systems for better combustion. These systems increase power and cut emissions.

Combustion Chamber Design

The combustion chamber is where fuel burns to make power. Its shape affects how well the air-fuel mix burns. Good designs boost power and lower emissions.

The research compares chamber designs:

TRCC creates high pressure and burns fuel quickly.
SRCC and TRCC release fewer harmful gases than other designs.
TRCC also reduces carbon monoxide and improves airflow during compression.

TRCC performs best, followed by TCC, SCC, CCC, HCC, and SqCC. Picking the right chamber design helps the engine work efficiently.

Coolant Passages and Heat Management

Coolant passages in the cylinder head help keep the engine cool. These passages let coolant flow through, absorbing heat from combustion. Without this system, the engine could overheat and get badly damaged.

Coolant moves from the radiator into the cylinder head. It flows through channels near the combustion chamber and hot areas. The coolant takes heat away to the radiator, where it cools down before starting the cycle again.

Good heat management depends on how the coolant passages are designed. Modern cylinder heads use advanced designs to transfer heat better. Some engines have cross-flow systems to improve coolant flow and stop hot spots. Materials like aluminum, which conduct heat well, also help cooling.

Signs of bad heat management include overheating, steam, or a rising temperature gauge. If you see these signs, check the cooling system right away. Regular maintenance, like flushing the coolant and fixing leaks, keeps passages clear and working well.

Camshafts and Rocker Arms

Camshafts and rocker arms are key parts of the cylinder head. They control when the engine’s valves open and close. This timing allows air and fuel to enter and exhaust gases to leave.

The camshaft turns and pushes the rocker’s arms. This movement makes the rocker arms press on the valves, opening them. When the camshaft turns more, the rocker’s arms release the valves, closing them. This process keeps the engine running smoothly.

Modern camshafts are made to last and work precisely. Some engines use variable valve timing (VVT) to adjust camshaft timing based on speed and load. This improves fuel use and performance.

Rocker arms are usually made of lightweight materials like aluminum or steel. This reduces engine weight and boosts efficiency. Check these parts often. Worn camshafts or rocker arms can cause poor performance, strange noises, or valve problems.

By learning about coolant passages, camshafts, and rocker arms, you can take better care of your engine and keep it running well for a long time.

Common Issues with Cylinder Heads

Cracks and Warping

Cracks and warping are problems that harm the cylinder head. Cracks happen from overheating or too much stress. Warping occurs when heat spreads unevenly. Both issues weaken the seal between the cylinder head and the engine block. This causes lower compression and power loss.

You can find these problems using these methods:

Pressure Testing: Blocks water paths and adds pressure to find leaks.
Dye Penetrant System: Uses dye to show cracks clearly.
Flatness Checks: Measures to ensure the cylinder head stays even.

Ignoring cracks or warping can lead to expensive repairs. Regular checks and keeping the cooling system in good shape can stop these problems.

Leaking Gaskets

Leaking gaskets are another common cylinder head problem. The gasket seals the cylinder head to the engine block. It stops coolant, oil, and gases from mixing. A bad gasket can cause overheating, low compression, or mixed fluids.

Signs of a bad gasket include white exhaust smoke, oil in coolant, or poor engine performance. Fixing these problems early can save your engine.

Replace old gaskets quickly. Make sure the cylinder head is flat before adding a new gasket. This ensures a tight seal and prevents future leaks.

Valve or Spark Plug Failures

Valve and spark plug problems often come from cylinder head issues. Broken valves mess up airflow and compression. Bad spark plugs make ignition harder. These problems lower engine power and can cause misfires or waste fuel.

Tests can find these problems:

Test Type	What It Does
Compression Test	Checks pressure in cylinders; low pressure shows cylinder head trouble.
Leak-Down Test	Adds air to cylinders to find leaks; shows exact problem spots.

Cracks in the cylinder head can mix oil and coolant, harming spark plugs. In older engines, broken valve springs may confuse test results. For example, a Chevrolet engine might pass a test but fail at idle due to weak springs.

Check valves and spark plugs often to avoid these problems. Replace damaged parts quickly to keep your engine running well.

Signs of Cylinder Head Damage

Spotting cylinder head damage early can save you money. A bad cylinder head hurts engine performance and can cause big problems. Look out for these common warning signs:

1. Overheating Engine

A damaged cylinder head can make your engine overheat. Cracks or warping mess up the cooling system, stopping heat from escaping. You might see the temperature gauge climb high or steam from the hood.

2. Loss of Engine Power

A broken cylinder head lowers engine compression, cutting power. Your car may feel slow to accelerate or lose performance. This happens because the combustion process doesn’t work well without a proper seal.

3. White Smoke from the Exhaust

Thick white smoke from the exhaust is a serious sign. It usually means coolant is leaking into the combustion chamber. This happens when the cylinder head cracks or the gasket blows, burning coolant with fuel.

4. Coolant or Oil Leaks

Look for coolant or oil puddles under your car. A damaged cylinder head can cause these fluids to leak outside. Inside, coolant might mix with oil, creating a milky, frothy liquid. This mix can badly damage your engine if ignored.

5. Poor Fuel Efficiency

A faulty cylinder head messes up the air-fuel mix and combustion. This makes the engine work harder and use more fuel. If you’re refueling more often, it could mean cylinder head trouble.

6. Engine Misfires or Rough Idling

Cylinder head damage can cause misfires or rough idling. You might feel shaking or hear strange sounds while the engine runs. These happen because the combustion chamber loses pressure or airflow.

By watching for these signs, you can fix cylinder head problems early and avoid costly repairs. Regular checks and maintenance will keep your engine running smoothly. 🚗

Maintenance Tips for Cylinder Heads

Regular Inspections

Checking the cylinder head often helps find problems early. This can save you from expensive repairs. Use these methods to check for damage:

Compression Test: Checks cylinder pressure. Low pressure may mean cracks or gasket problems.
Leak-Down Test: Adds air to cylinders to find leaks. It shows cracks or other issues.
Visual Inspection: Look closely for cracks or damage. Use a magnifying glass during engine checks.
Chemical Test: Finds exhaust gases in the coolant. This shows leaks from cracks or bad gaskets.
Pressure Testing: Blocks water paths and adds pressure to find leaks.
Dye Penetrant Testing: Uses dye to highlight cracks after cleaning the surface.

Also, check valve guides, seats, and grooves for wear. Worn parts can cause overheating or valve problems. Inspect bolt-hole threads to ensure proper tightening and avoid warping. Following these steps keeps the cylinder head in good condition.

Cleaning and Debris Removal

Keeping the cylinder head clean helps the engine work better and last longer. Dirt and carbon buildup can block airflow and lower efficiency. Cleaning these areas ensures smooth operation.

Remove carbon deposits from the combustion chamber and valves. Use soft brushes or special tools to avoid scratches. For tough buildup, apply a cleaner and let it sit before scrubbing.

Clear intake and exhaust ports of blockages. Blocked ports reduce airflow and engine power. Also, clean coolant passages to help with heat control.

Regular cleaning stops debris from causing damage. It also helps the engine burn fuel better, saving gas money.

Monitoring Coolant and Oil Levels

Coolant and oil are key to protecting the cylinder head. Checking their levels keeps the engine cool and lubricated.

Look at the coolant tank often. Low coolant can cause overheating, which may crack or warp the cylinder head. If coolant drops often, check for leaks.

Oil is just as important. It reduces friction and protects moving parts. Low oil can lead to overheating and damage to parts like camshafts.

By watching these levels, you can stop overheating and keep the cylinder head working well.

Replacing Worn Gaskets and Seals

Old gaskets and seals can lead to engine trouble. They seal the cylinder head to the engine block tightly. This stops coolant, oil, and gases from leaking. Over time, heat and pressure wear them out. When this happens, leaks and poor engine performance can occur.

How to Spot Worn Gaskets and Seals

Look for these signs to find worn gaskets or seals:

Coolant or Oil Leaks: Puddles under your car show a possible issue.
White Smoke: Coolant in the combustion chamber makes thick white exhaust.
Milky Oil: Mixed oil and coolant turn the oil a milky color.
Overheating: A bad gasket can mess up the cooling system.

Steps to Replace Worn Gaskets

Replacing gaskets needs care. Follow these steps to do it right:

Remove the Cylinder Head: Take off parts and lift the cylinder head carefully.
Clean the Surface: Scrape off old gasket material. Make sure it’s smooth and clean.
Inspect the Cylinder Head: Look for cracks or warping. Use a straight edge to check flatness.
Install the New Gasket: Place the gasket on the engine block. Align it with bolt holes.
Reattach the Cylinder Head: Tighten bolts in order and to the correct torque.

Fixing worn gaskets quickly avoids bigger engine problems. It also restores compression and boosts performance.

Fixing Overheating Problems

Overheating can harm the cylinder head badly. High heat may cause cracks, warping, or gasket failure. Fixing overheating fast protects your engine and saves money.

Why Engines Overheat

Here are common reasons for overheating:

Low Coolant Levels: Not enough coolant means less heat control.
Clogged Coolant Passages: Dirt or debris blocks the cooling system.
Broken Thermostat: A stuck thermostat stops coolant from flowing.
Faulty Water Pump: If the pump breaks, the coolant won’t circulate, causing heat buildup.

Steps to Fix Overheating

Follow these steps to handle overheating:

Stop Driving: Pull over and turn off the engine. Driving overheated can cause damage.
Check Coolant Levels: Let the engine cool, then check the coolant tank. Add coolant if needed.
Look for Leaks: Check for coolant puddles under the car or near hoses.
Clean the Radiator: Remove dirt or debris blocking airflow.
Test the Thermostat: Replace it if it’s stuck or not working.

Prevent overheating with regular maintenance. Keep coolant levels steady, flush the system often, and check parts like the thermostat and water pump. A good cooling system keeps your cylinder head safe and your engine running well.

Why the Cylinder Head is Vital for Engine Longevity

Contribution to Engine Efficiency

The cylinder head is key to making engines work well. It helps burn the air-fuel mix properly, which boosts power and saves fuel. A good cylinder head allows smooth airflow and precise valve control. This makes the engine use fuel better, saving you money on gas.

Modern cylinder heads are built to improve efficiency even more. New designs increase compression and seal tightly, so no energy is wasted. This steady compression not only improves performance but also protects other engine parts. Over time, this means fewer repairs and a longer-lasting engine.

Prevention of Major Engine Damage

A working cylinder head keeps your engine safe from big problems. It seals the combustion chamber, stopping leaks of coolant, oil, or gases. Without this seal, the engine could lose power, overheat, or get damaged inside.

Newer cylinder heads are made to handle tough conditions. They resist cracking and warping, even under high heat and pressure. This strength lowers the chance of major failures like blown gaskets. Studies show that replacing old cylinder heads removes the risks of worn-out parts. This keeps your engine reliable for a long time.

Benefit	Explanation
Stronger Materials	New cylinder heads avoid cracks and metal fatigue.
Better Design	Improved engineering prevents overheating and boosts durability.
Tight Sealing	New heads ensure proper compression and sealing.
Heat Resistance	Modern heads resist warping under extreme heat.
No Old Damage	New parts avoid problems from previous wear and tear.
Saves Money	Fewer repairs mean long-term savings.

Fixing these issues early can save you money and extend your engine’s life.

Role in Overall Vehicle Performance

The cylinder head affects how well your car runs. It controls how air and fuel enter the engine and how exhaust leaves. This balance is needed for smooth driving, steady power, and fewer emissions.

High-quality cylinder heads make driving better. Advanced designs, like variable valve timing, help engines respond faster to speed changes. This gives smoother rides, whether in traffic or on highways.

A well-kept cylinder head also makes your car more reliable. It lowers the chance of breakdowns and keeps the engine running its best. Regular checks and quick repairs can keep your car dependable for years.

The cylinder head is crucial for your engine to work well. It helps burn fuel properly, keeps air moving, and manages heat. These tasks improve how the engine runs and lasts longer.

Take care of the cylinder head with regular checks. Look for damage, clean out dirt, and check coolant levels to stop overheating. Change old gaskets and seals quickly to prevent leaks or harm.

FAQ

What does a cylinder head do?

The cylinder head closes the combustion chamber and holds key parts like valves and spark plugs. It helps with airflow, fuel mixing, and cooling, making the engine work smoothly and reliably.

How can I know if my cylinder head is broken?

Watch for engine overheating, white exhaust smoke, coolant or oil leaks, bad gas mileage, or rough engine sounds. These signs may mean cracks, warping, or gasket problems.

Why should I maintain the cylinder head?

Maintenance stops overheating, leaks, and dirt buildup. It keeps airflow smooth, burns fuel properly, and cools the engine well. This protects the engine and helps it last longer.

Can a cracked cylinder head be fixed?

Yes, but it depends on how bad the crack is. Small cracks can be repaired with welding or sealing. Big cracks might need a new cylinder head. Always ask a mechanic to check.

How do I clean a cylinder head?

Use a soft brush or special tools to clean off dirt and carbon. Use cleaners safe for aluminum or cast iron. Don’t use strong chemicals that might harm the cylinder head.
