Functions of timing belts and timing chains
Whether it is a chain or a belt, their core functions are:
Connect the crankshaft and camshaft to keep them synchronized;
Control the opening and closing time of the valve to ensure coordination with the movement of the piston;
Ensure that the intake, compression, combustion, and exhaust during the combustion process are carried out on time.
If the timing system fails, the engine will experience a drop in power and difficulty in starting. In severe cases, it may even cause the valves and pistons to collide with each other, causing major damage.

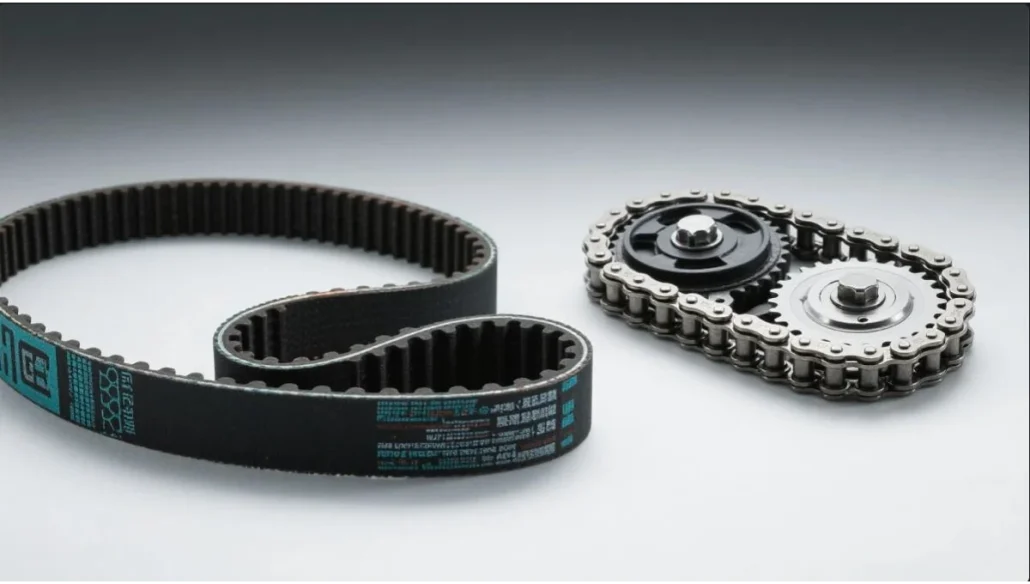

timing belts VS timing chains
Timing belts and timing chains are two different driving methods in the engine valve system. They have some differences in structure, performance, and service life.
- Material structure: The timing belt is a belt-shaped transmission part made of rubber or other flexible materials, while the timing chain is a transmission chain composed of metal links.
- Noise: Due to the material of the timing belt, the noise during its operation is relatively small, while the timing chain will generate a large noise during operation due to the structure of its metal links.
- Durability: The life of the timing belt is usually short and needs to be replaced regularly (recommended replacement every 60,000-100,000 kilometers), while the durability of the timing chain is higher and can generally be used for more than 200,000 kilometers.
- Maintenance cost: Since the timing belt is replaced frequently, its maintenance cost is relatively high; while the maintenance cost of the timing chain is lower because it usually does not need to be replaced throughout the service life of the engine.
Summary:
The timing belt has the advantages of low noise, low transmission resistance, good engine power and acceleration performance, and easy replacement, but it is easy to age, has a relatively high failure rate, and has a high maintenance cost.
The advantages of the timing chain are long service life and low failure rate. Of course, it also has the disadvantages of high rotation noise, slightly increased fuel consumption, and reduced performance.
In short, the timing belt and the timing chain play the same role in the engine valve system, but they have certain differences in structure, performance, and service life. The choice of which drive mode depends on the design requirements and cost considerations of the engine.
Maintenance and replacement
Timing belt maintenance suggestions:
Regular replacement: It is recommended to replace it at 60,000~100,000 kilometers according to the vehicle model manual;
Check belt tension and cracks: Regularly check whether the belt is loose, cracked, or missing teeth;
Synchronous replacement of related parts: When replacing the belt, it is recommended to replace the tensioner, water pump, and other related parts at the same time to avoid hidden dangers.
Timing chain maintenance suggestions:
Use high-quality engine oil: The chain relies on engine oil lubrication, keeping it clean and stable in viscosity can delay wear;
Pay attention to abnormal engine noise: When the chain is loose, it may make a “clicking” sound, which must be checked in time;
Regularly check the tensioner and guide rail: The aging of these two components will also affect the life of the chain.
Choose Baileparts‘ timing system components
Baileparts provides timing chain and timing belt products covering multiple brands and models, covering mainstream engines such as Yanmar, Kubota, Mitsubishi, Isuzu, etc. Our products:
100% compatible with OEM specifications;
High-strength materials are used for durability;
Support global delivery and quick response to after-sales support.
Whether you are a maintenance technician, dealer, or end user, just provide the engine model or part number, and we can match the timing parts you need for you.
Conclusion
Although the timing system is inconspicuous, it is related to the “heartbeat” rhythm of the entire engine. Choosing the right timing components and maintaining them on time is the key to ensuring the operating efficiency and life of the engine. Welcome to baileparts.com for more technical support and accessories information to keep your engine in the best condition!
