Kubota Z482 Engine: A Stable Power Source For Small Machinery

Kubota Z482 Engine Features and Specifications

🔧 Kubota Z482 Engine Technical Specifications

Engine Type	Water-cooled 4-stroke vertical diesel engine
Number of cylinders	2 cylinders
Bore × stroke	67.0 mm × 68.0 mm
Total displacement	0.479 L (479 cc)
Compression ratio	23.5:1
Maximum output power	10.9 kW / 14.6 HP (at 3600 rpm)
Maximum torque	33.6 Nm (approx.)
Cooling system	Water-cooled
Fuel system	Injection pump type
Net weight	46 – 52 kg (depending on configuration)

✅ Main features of the Kubota Z482 engine

• Compact and lightweight design
  Z482 adopts a horizontal water-cooled twin-cylinder structure with a small size
• Low fuel consumption & high efficiency
  Optimize combustion chamber design, improve fuel utilization, and save operating costs.
• Low noise and low vibration
  The engine adopts advanced noise reduction measures and balancing technology to make the engine less noisy and vibrating when running, providing a more comfortable working environment.
• Good cooling performance
  The water cooling system improves the cooling effect and ensures reliable operation in high-temperature environments.
• Environmental performance & low emissions
  Emissions meet international environmental standards such as EPA Tier 4 and EU Stage V, with low emission levels, and are environmentally friendly.
• Easy maintenance
  The accessories are highly versatile, and the maintenance space is reasonable, suitable for maintenance stations and batch maintenance scenarios.

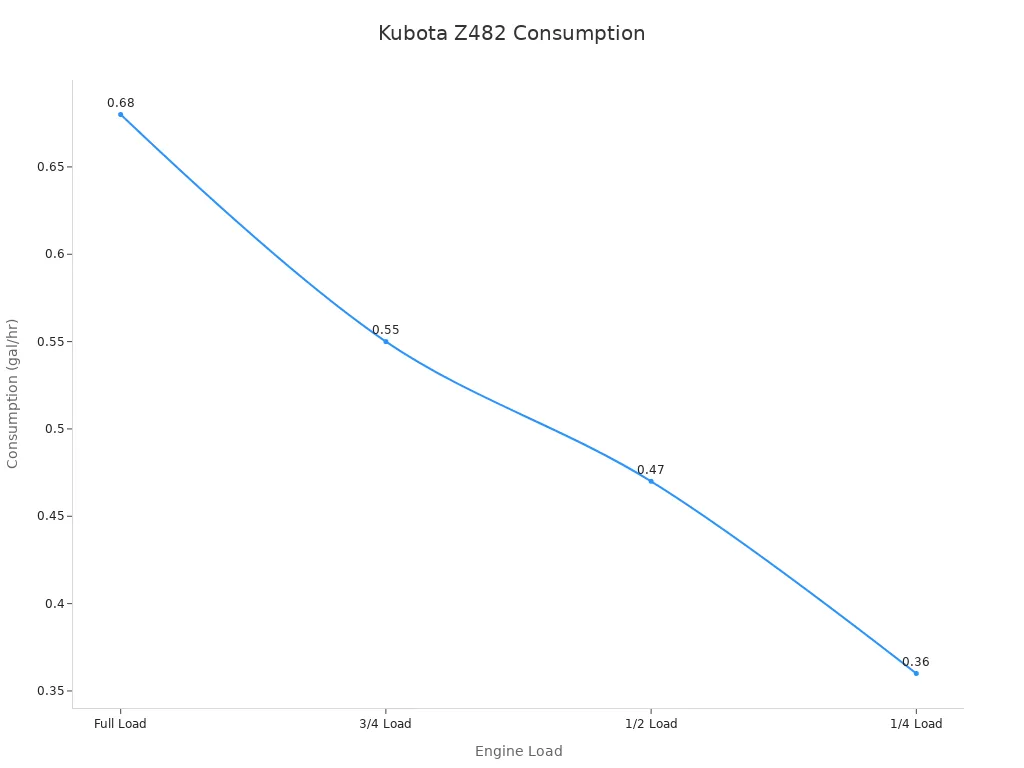

Power and efficiency

This engine gives steady and strong power. The Kubota Z482 engine can make 11.3 hp (8.4 kW) at 3,600 rpm. The engine uses less fuel when you do lighter work. This is good for long tasks.

Application scope

Kubota Z482 engine has the characteristics of moderate power output, economical fuel consumption, low noise and vibration, reliability, and durability, so it is widely used in

• Small Excavators
• Loaders
• Bulldozers
• Small Generator Sets
• Small Rollers
• Small Tractor

And other small and medium-sized equipment.

Maintenance Guide

Maintenance Basic Points

🔧 Replace and clean the air filter regularly to ensure the air intake quality of the engine.

🔧 Change the engine oil and oil filter regularly to keep the engine lubrication system working properly.

🔧 Check and replace the fuel filter regularly to ensure the purity of the fuel.

🔧 Check coolant level and quality regularly and add coolant if necessary.

🔧 Pay attention to the warning lights on the instrument panel and deal with and solve the problem promptly.

🔧 Regularly inspect and clean the outside of the engine to remove dust and debris.

🔧 Follow the maintenance schedule and requirements provided by the manufacturer.

Other notes

✔ Follow the operating manual and safety guidelines to master correct operation methods.
✔ Avoid overloading and long-term operation, and pay attention to the rated load and working hours of the equipment.
✔ If problems such as abnormal noise, vibration, or oil leakage occur, stop using it immediately and carry out inspection and repair.
✔ Conduct regular inspections and inspections to ensure the normal operation of each component and avoid small problems turning into major failures.
✔ If you are unsure or need help, it is recommended to consult a professional maintenance technician or contact Kubota’s technical support.

Please note that the above guide only provides some maintenance points and precautions. Specific operation and maintenance requirements should be carried out according to the specific model of the Kubota Z482 engine and the guidelines provided by the manufacturer. To ensure safety and maintain optimal engine performance, always refer to the official user manual and instructions and follow the manufacturer’s guidance and recommendations.
