The John Deere 4045 engine is widely used in agricultural equipment, construction machinery, industrial power, and other fields with its stable performance, durability, and excellent fuel efficiency.
As a core member of the John Deere PowerTech series, the 4045 engine is used by a large number of farmers, machinery manufacturers, and equipment repairers around the world.

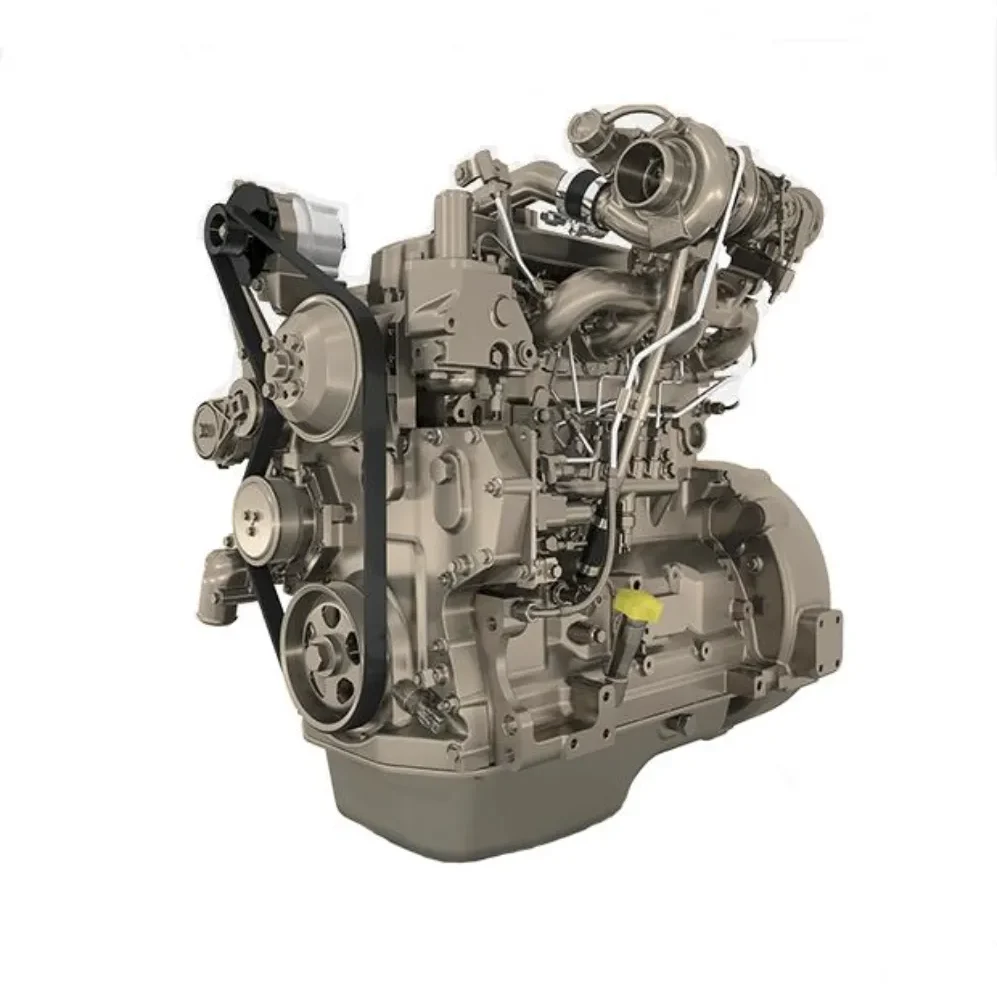

John Deere 4045 Engine Introduction
The John Deere 4045 series is a 4-cylinder in-line, water-cooled, four-stroke diesel engine with a displacement of 4.5 liters. Some models are equipped with turbochargers or intercoolers. They are widely used in John Deere’s brand equipment and OEM main equipment.
The engine has a mature design, compact structure, strong adaptability, strong high-temperature and high-load endurance, and is a reliable power source in the agricultural and engineering fields.
Common models of the 4045 series include:
4045D (naturally aspirated)
4045T (turbocharged)
4045TF/4045HF (turbocharged with intercooler)
4045HFC04/4045HFG (meets Tier 3 / Tier 4 emission standards)
Specifications
| Parameters | Details |
|---|---|
| Engine type | Inline 4-cylinder, four-stroke diesel engine |
| Displacement | 4.5 liters (275 cubic inches) |
| Bore × stroke | 106 × 127 mm (4.17 × 5.00 inches) |
| Compression ratio | 17.0:1 ~ 19.0:1 (slightly different for different models) |
| Maximum power | 63–129 kW (85–173 horsepower), depending on the specific model |
| Peak torque | 300–525 Nm (depending on the model) |
| Fuel system | Mechanical or electronic direct injection system |
| Cooling method | Liquid cooling |
| Boosting method | Turbocharged/intercooled |
| Emission standards | Tier 1–Tier 4/Stage V (covering multiple emission regulations) |
| Dry weight | 396–578 kg (depending on the model) |
| Common structure codes | 4045TF270, 4045HF285, 4045HFC04, etc. |
The above parameters cover the mainstream models of the John Deere 4045 series. Please refer to the actual equipment nameplate for specific data.
Application scenarios
With its diverse configuration and excellent power output, the John Deere 4045 engine is suitable for the following fields:
- 🚜 Agricultural machinery
Tractors (John Deere 5E, 5M series)
Combine harvesters, balers
Sprayers, seeders
Irrigation pump power sources - 🏗️ Engineering and construction equipment
Small loaders, excavators
Skid steers, rollers
Concrete pump trucks, lifting platforms
Generator trucks, hydraulic power units - ⚙️ Industrial and OEM power equipment
Diesel generator sets (30–100 kVA)
Air compressors, water pumps
Industrial welding machines, cooling units
Its high torque output and excellent fuel economy make it perform particularly well under heavy load and continuous operation conditions.
Common John Deere 4045 engine parts
During long-term operation, the 4045 engine will need to replace key parts due to wear, aging, and other problems. The following are common repair and replacement parts:
| Internal engine parts: | Piston & Ring Set、Cylinder Liner、Main & Rod Bearings、Crankshaft Assembly / Repair Kit |
| Cylinder Head and Seals: | Cylinder Head、Cylinder Head Gasket、Valve Seals, Valve Assemblies、Full Gasket Kit / Overhaul Kit |
| Lubrication and Cooling System: | Oil Pump、Water Pump、Fan Belt、Tensioner, and Other Accessories |
| Injection System and Supercharger: | Injectors、Injection Pump、Turbocharger |
Purchase and maintenance suggestions
- Before purchasing parts, please provide the engine model (such as 4045TF270) and serial number (Engine Serial Number) accurately to ensure matching.
- Regularly replace the oil filter, air filter, and fuel filter to ensure a clean and efficient combustion system.
- If the engine is difficult to start, emits white smoke, or has reduced power, it is recommended to check the cylinder pressure, injection system, and seal status.
- If the engine is under high temperature or heavy load for a long time, the high-wear parts such as the water pump, turbocharger, and bearing should be checked regularly.
Summary
The John Deere 4045 engine has become an ideal power choice for many industries due to its high reliability, strong power output, and easy maintenance. Through scientific maintenance and standardized operation, the engine life can be greatly extended, the failure rate can be reduced, and the operational efficiency can be improved.
To ensure continued smooth operation, regular replacement of quality, reliable replacement parts is essential. Baileparts offers high-quality John Deere 4045 engine parts, including original and OEM aftermarket replacement parts.
